Green Valley LiDAR - LiAir S 50
Green Valley LiAir 50

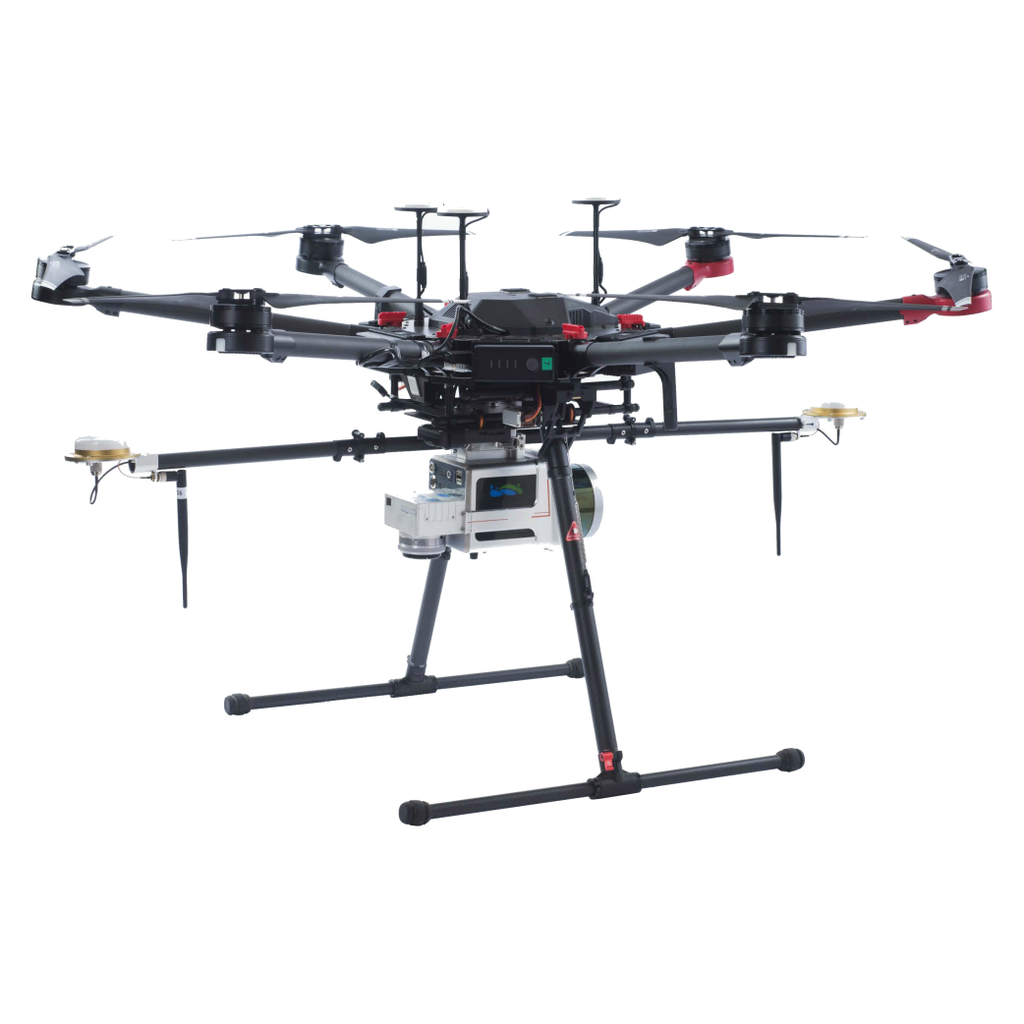

LiAir 50 powered by Velodyne's VLP-16 sensor is GVI's most cost effective UAV LIDAR system. Choose between Standard (S50) and Premium (P50) aided inertial navigation packages for resolving position ambiguities that occur during data collection. An optional high definition digital camera module is available for those seeking to produce true color 3D point clouds. The LiAir 50 provides a turnkey solution for those that are new to UAV LIDAR as well as the most seasoned professionals.
Acquisition & GNSS/INS Post-Processing Software LiNav is a GNSS/INS post-processing module integrated in our acquisition software, LiAcquire. It provides tools to process GNSS/INS data acquired by the LiAir system and can export centimeter-level position and attitude results for point cloud and image georeferencing. With a one-button process, it provides a system performance report ensuring highly reliable results.
Mission Planning Software LiPlan is a UAV ground station control application developed by GVI specifically for use with the LiAir Series and the DJI M600 Pro
Point Density
| Specifications | |||
| Laser Sensor | Velodyne VLP-16 | Weight | 3.4 kg excl. battery & camera |
| Range Accuracy | ±3 cm | Dimensions | 1170*181*197 mm |
| Maximum Range | 70 m | Max. Flight Time | 21 min |
| System Relative Accuracy | ±5 cm (S200) | Camera | Sony a6000 |
| POS System Performance | Attitude: (S50) 0.1° (1σ) | Route Planning Software | LiPlan (proprietary) |
| Azimuth: (S50) 0.1° (1σ) | Acquisition/PP POS Software | LiAcquire (proprietary) | |
| Attitude: (P50) 0.015° (1σ) | Vertical FOV | -15°~ +15° | |
| Azimuth: (P50) 0.08° (1σ | Horizontal FOV | 360° | |
| Onboard Storage | 128 GB | ||
| Ports Available | Ethernet & USB 3.0 |
