D-RTK 3 Multifunctional Station - Rental

Rent the DJI D-RTK 3 Multifunctional Station for $500 CAD per week.

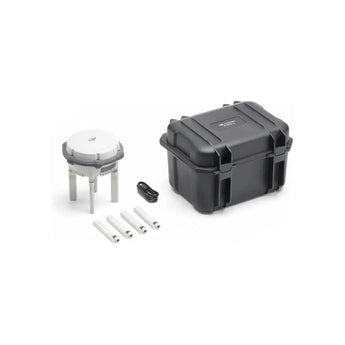

Included in the rental:

• D-RTK 3 Multifunctional Station × 1
• Spare OcuSync Directional Antennas × 4
• USB-A to USB-C Cable × 1

Key Features

• Multi-Mode Operation: Functions as a base station, relay station, or rover station for versatile mission scenarios.
• Centimeter-Level Accuracy: Delivers 0.8 cm horizontal and 1.5 cm vertical positioning accuracy for precision surveying.
• Wide Compatibility: Tracks GPS, BDS, Galileo, GLONASS, QZSS, and L-Band signals for enhanced reliability.
• Extended Range in Relay Station Mode:
  • FCC: Up to 15 km between aircraft and relay station, 1 km to the remote controller.
  • SRRC: Up to 12 km between aircraft and relay station.
  • CE: Up to 8 km between aircraft and relay station.
• IP67 Protection: Durable and weather-resistant, designed for challenging outdoor environments.

Rover Station Mode for High-Precision Aerial Surveying
When used in rover station mode, the D-RTK 3 provides a complete solution for aerial surveying. Paired with the DJI ENTERPRISE app and DJI Terra, it enables accurate static and tilt measurements with tilt accuracy of <2 cm within 30° tilt angles, making it ideal for topographic mapping and 3D modeling.

Specifications

• GNSS Frequencies: Supports GPS, BDS, Galileo, GLONASS, QZSS, and L-Band.
• Measurement Accuracy:
  • Static Measurement:
    • Horizontal: 0.8 cm + 1 ppm (RMS)
    • Vertical: 1.5 cm + 1 ppm (RMS)
  • Tilt Measurement:
    • Angle Range: 0° to 60°
    • Accuracy: <2 cm within 30° tilt
• Max Transmission Distance:
  • FCC: Up to 15 km between aircraft and relay station
  • Protection Rating: IP67
• Dimensions: 163 × 89 mm (without antennas)
• Weight: 1.26 kg

Tips for Optimal Use

1. Ensure optimal placement of the relay station in a high, unobstructed location for clear communication.
2. Be mindful of intense vibrations or rapid rotations that may affect the inertial measurement unit’s accuracy.
3. Regularly check all rubber plug interfaces and ensure they are properly installed to maintain protection from dust and water.
4. Avoid environments with strong electromagnetic interference to ensure measurement accuracy.

Enhance Your Precision Missions with the DJI D-RTK 3 Multifunctional Station
Whether for large-scale surveying, extended range operations, or high-accuracy positioning, the D-RTK 3 Multifunctional Station delivers unparalleled reliability and versatility
