DJI Zenmuse S1 - Weekly Rental

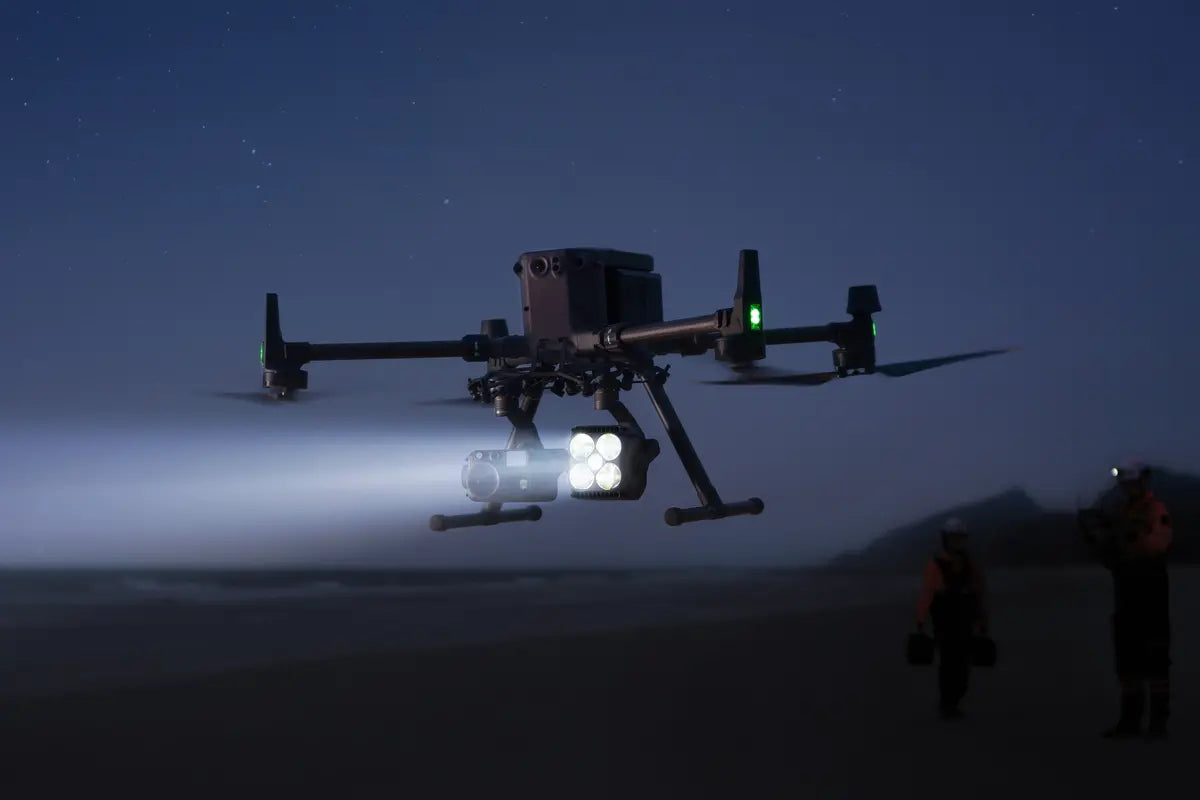

The DJI Zenmuse S1 brings Laser Excited Phosphor (LEP) spotlight capability to the DJI Matrice 400 and Matrice 350 RTK, enabling public safety, search and rescue, and inspection teams to illuminate targets up to 500 metres away during nighttime and low-visibility operations.

• Illuminate targets 500 metres away: Four selectable beam modes - Low Beam, High Beam, Both On, and Strobe - adapt coverage from a wide 15-degree area search to a focused 4-degree long-range spotlight, with up to 40 lux at 100 metres on the M400.
• LEP technology with low power draw: Laser Excited Phosphor delivers high-intensity light while High Beam mode draws just 17 W, preserving aircraft battery life and maximising mission endurance.
• Gimbal-synced with camera payloads: When paired with the Zenmuse H30 Series on the Matrice 400, the S1 automatically aligns its beam with the camera's field of view - no manual adjustment required during tracking.
• Built-in safety for crew and aircraft: Automatic eye protection limits output to 40% on the ground, shell temperature stays below 50°C, and on-board temperature, overcurrent, and power protection prevent component damage.

Overview and Who It's For

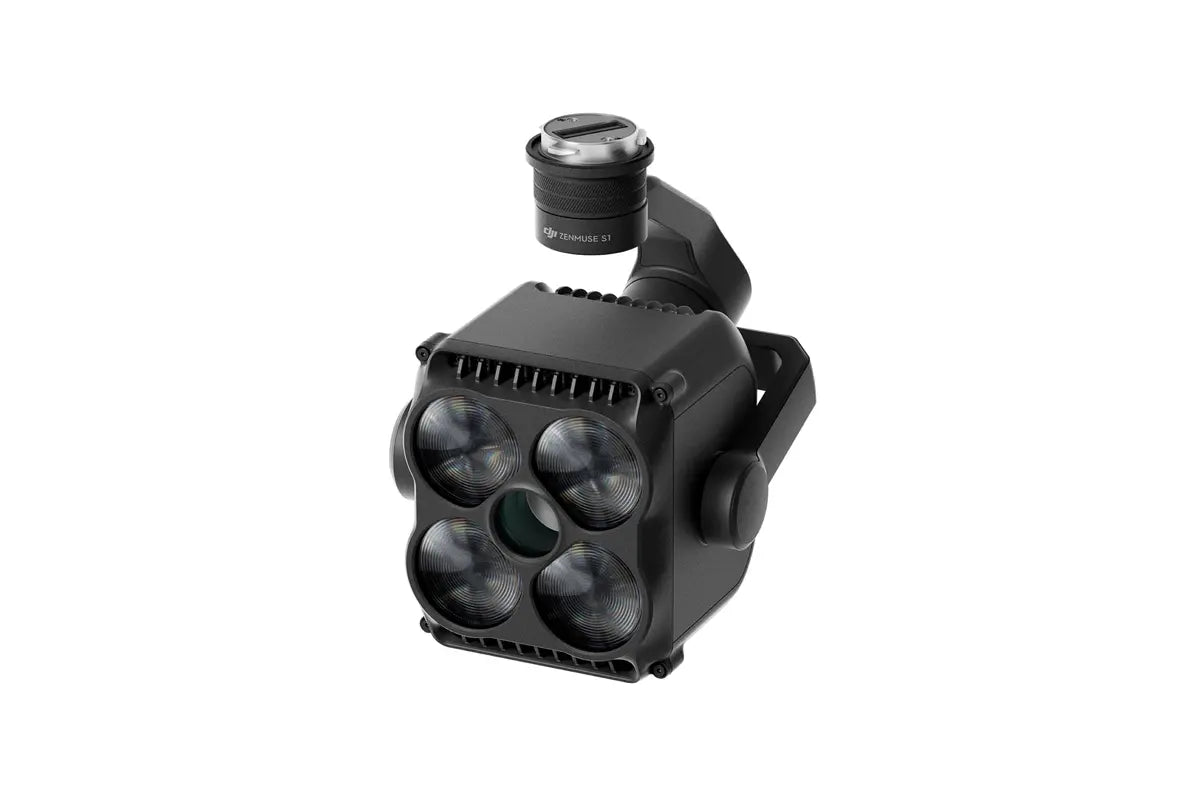

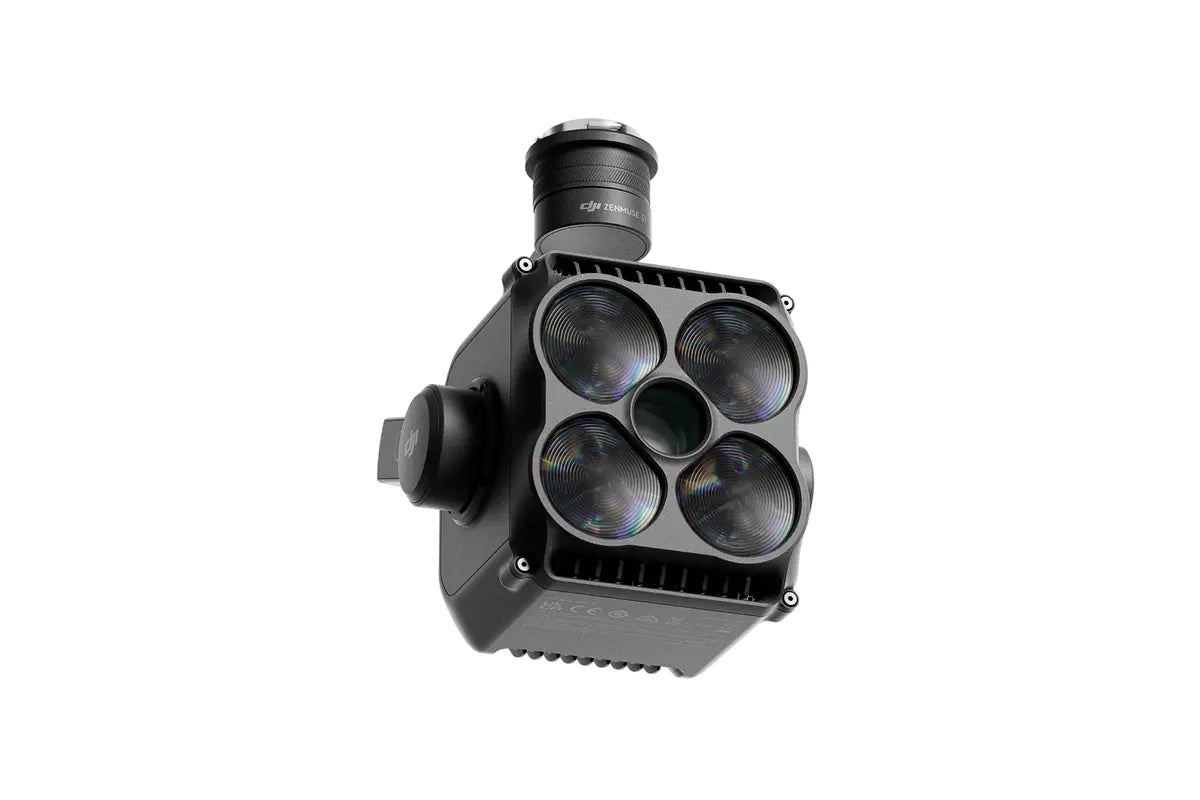

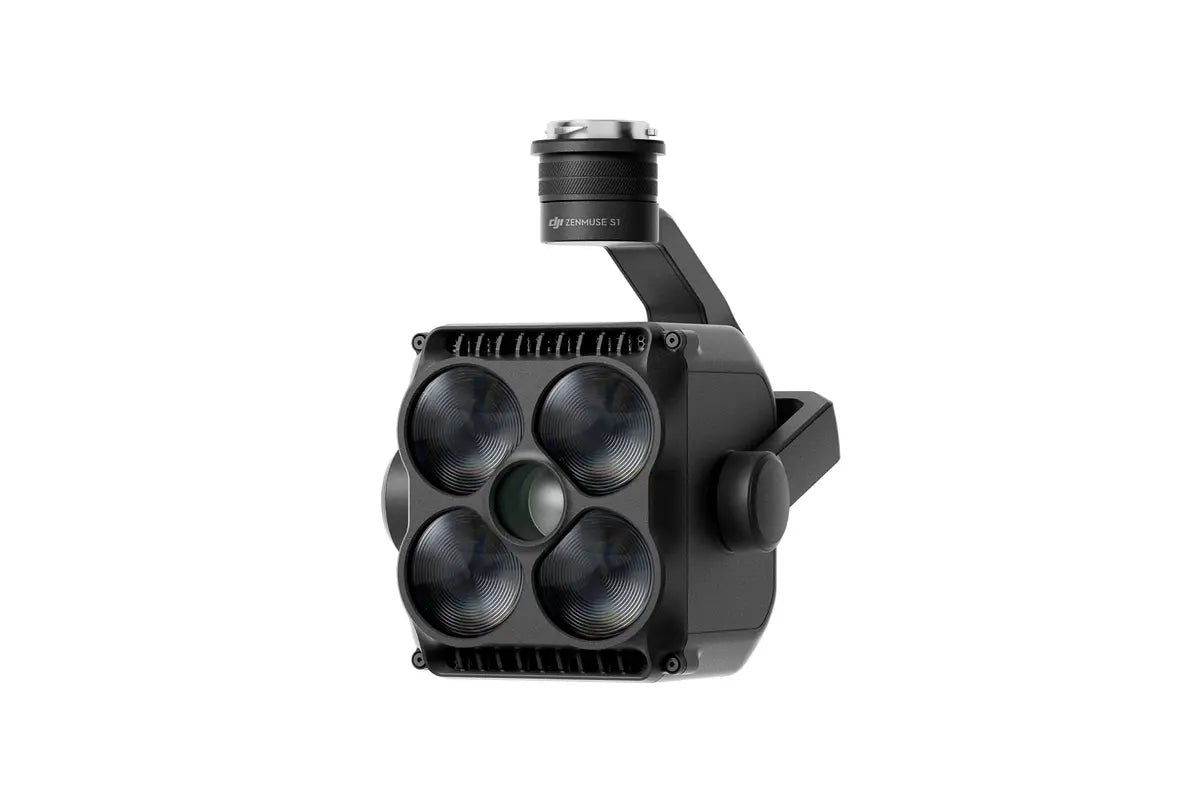

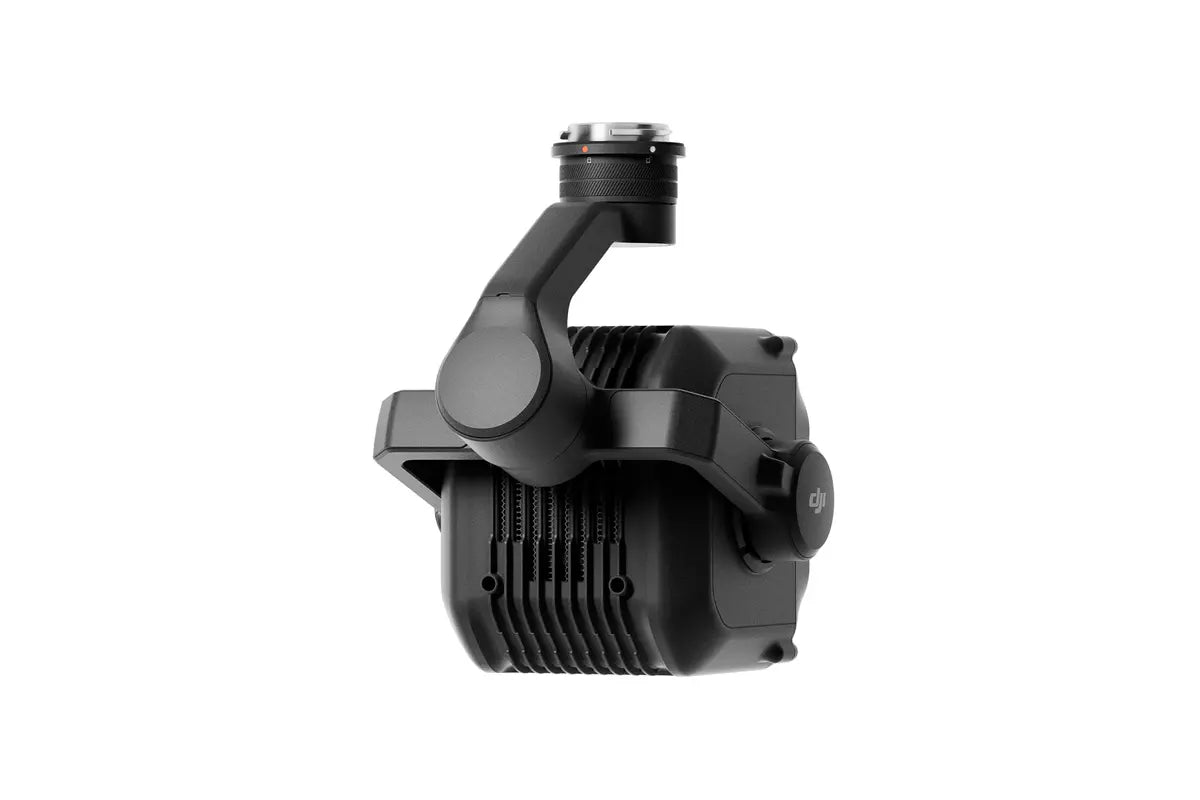

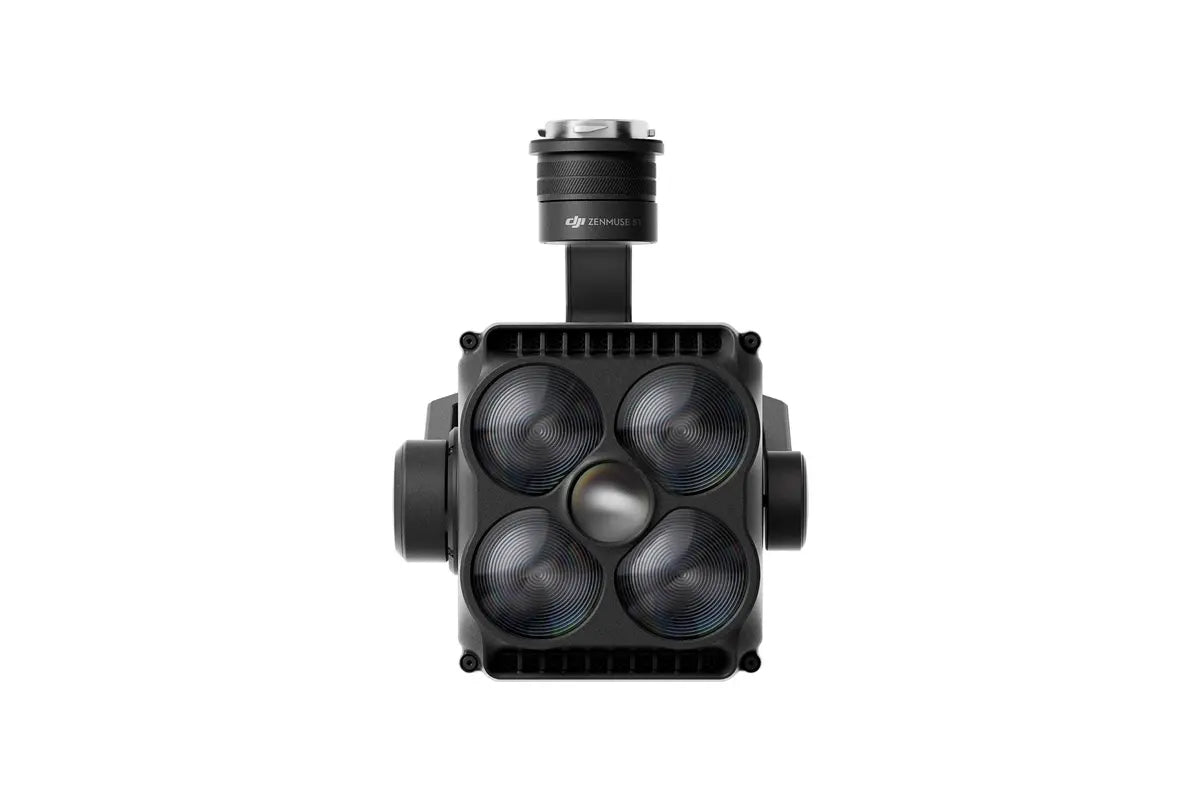

The Zenmuse S1 is DJI's first LEP spotlight designed for multi-payload drone platforms. Weighing 760 grams, it mounts to any gimbal connector on the DJI Matrice 400, Matrice 350 RTK, or Matrice 300 RTK, and is controllable via the DJI RC Plus through DJI Pilot 2. It delivers up to 10,000 lumens with a central illuminance of 35 lux at 100 metres on the M350, and 40 lux at 100 metres on the M400 in Both On mode.

This listing is for weekly rental. Contact Candrone to confirm availability and discuss multi-payload configurations.

Primary verticals:

• Public Safety - Search and rescue, law enforcement, and emergency response teams conducting nighttime operations who need long-range, controllable illumination alongside camera payloads.
• Energy and Utilities - Powerline, pipeline, and substation inspection crews requiring focused illumination for after-dark or dawn inspections without sacrificing flight time.
• Civil and Power - Construction and infrastructure teams conducting night inspections of bridges, facades, and active worksites where focused aerial lighting improves safety and visibility.

Also suited for: any Matrice 400 or Matrice 350 RTK operator whose missions extend into low-light conditions.

Key Specs

What's Included

• DJI Zenmuse S1 spotlight x1
• Carrying case x1

Regulatory and Compliance

Always confirm current Transport Canada RPAS requirements at tc.canada.ca before each operation. Night operations may require additional authorisations - contact Candrone's Solutions team for guidance.

FAQs

Can the Zenmuse S1 be used at the same time as a camera payload?
Yes. The S1 is designed for multi-payload platforms and can be mounted alongside camera payloads such as the Zenmuse H30 Series. On the Matrice 400, it synchronises gimbal movement automatically with the H30 to align the beam with the camera's field of view.

What is the difference between the four lighting modes?
Low Beam provides a wide 15-degree beam reaching approximately 150 metres -- best for area illumination and fill light at 5x zoom or above. High Beam uses the LEP source in a narrow 4-degree beam reaching approximately 300 metres. Both On mode combines both sources for maximum output up to 500 metres. Strobe provides high-frequency flashing for signalling or hazard warning.

Is the Zenmuse S1 safe to use near people on the ground?
The S1 carries IEC 62471 Risk Group 1 eye safety classification. When the aircraft is on the ground or hovering idle, an automatic protection feature limits output to 40% of maximum brightness. Avoid directing the High Beam at eye level from close range. Always follow your organisation's safety protocols for aerial lighting operations.

Does the S1 require the DJI RC Plus?
Yes for Matrice 350 RTK and Matrice 300 RTK. The DJI RC Plus is the only compatible remote for these aircraft. The Matrice 400 is compatible with its own standard controller.

How do I set up a rental?
Contact Candrone to confirm availability and discuss configuration with your existing aircraft and payload setup. Multi-week rates are available on request.

Warranty and Returns

Rental equipment is covered under Candrone's standard rental terms. For questions about rental conditions, damage policy, or extensions, contact our team.
