GreenValley LiMonitor G1

GreenValley LiMonitor G1 brings real-time LiDAR safety monitoring to work near energized electrical infrastructure, enabling power utilities, electrical contractors, and civil construction teams to measure clearance distances and receive graded alarms when configured thresholds are breached.

• Measure clearance with LiDAR and camera monitoring: Dual-sensor fusion combines LiDAR geometry with visible-light imagery to monitor scenes with ±10 cm ranging accuracy across a 120 m monitoring range.
• Respond to intrusions within 0.5 seconds: Track moving targets and trigger audible and visual alarms and remote voice warnings when configured clearance thresholds are breached.
• Keep alarm processing on-device: Real-time edge computing handles measurement, detection, monitoring, and alarms locally without requiring a cloud connection.

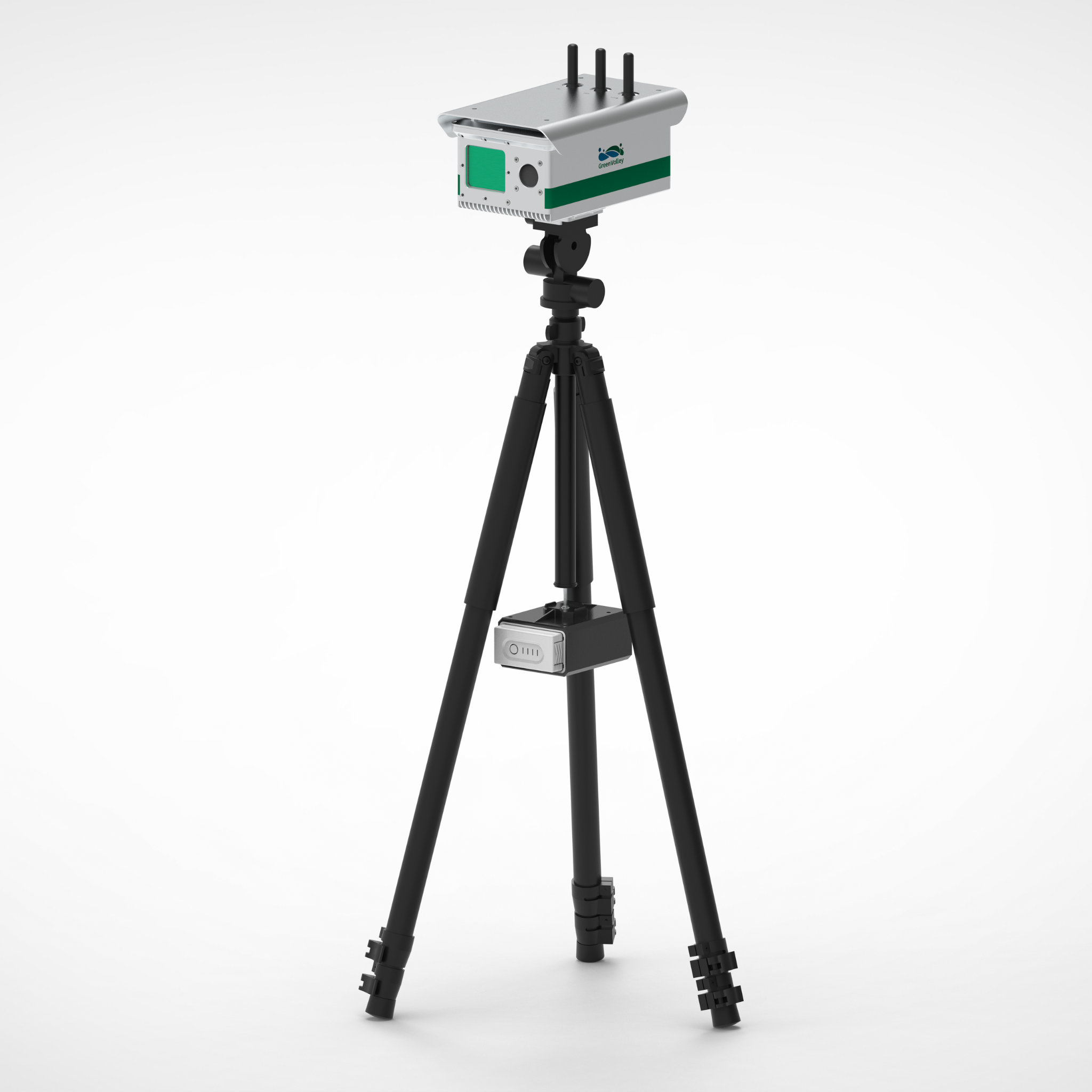

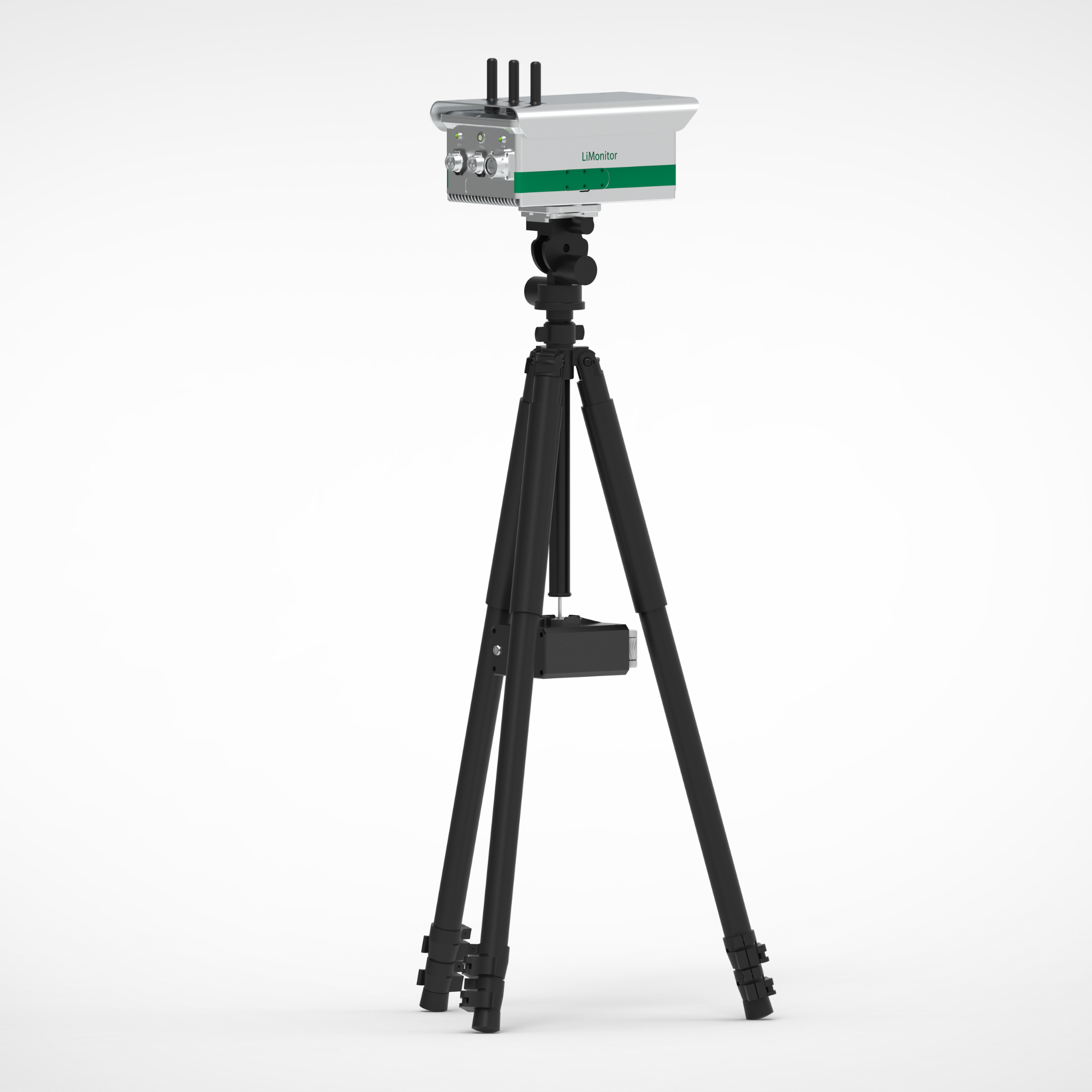

• Deploy across outdoor worksites: An IP66 enclosure, -20 to +65 degrees C operating range, and tripod-mounted 3.16 kg design support mobile monitoring in demanding site conditions.

Overview and Who It's For

The GreenValley LiMonitor G1 is a portable LiDAR-camera safety monitoring system designed for power utilities, electrical contractors, and civil construction teams working near energized equipment or active power infrastructure. It combines real-time distance measurement, dynamic target tracking, configurable alarms, local edge processing, and on-site data archiving through the LiMonitor Server platform.

• Civil & Power: Support substation maintenance, live-line work, and construction activity near energized electrical equipment with configurable safety-distance monitoring.

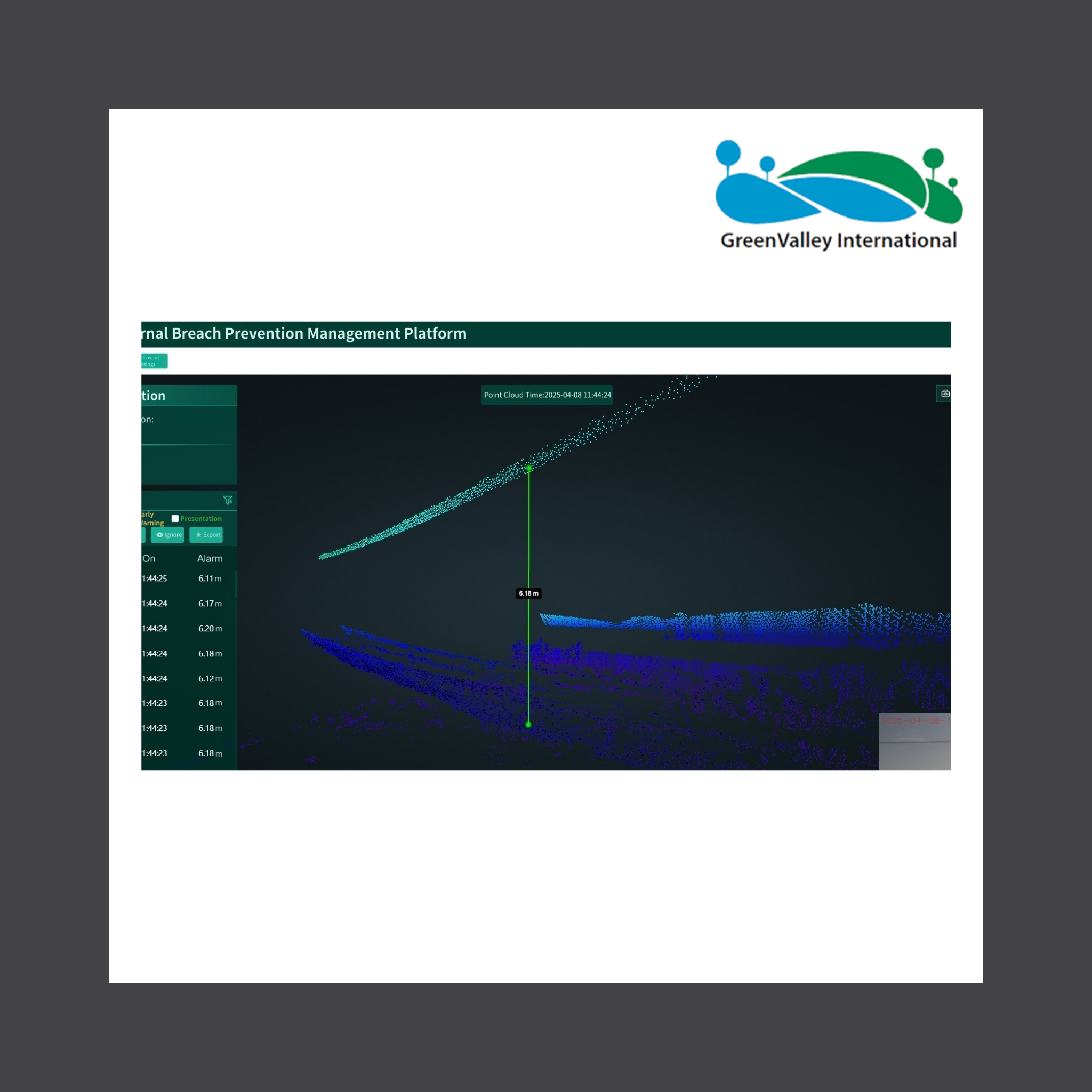

• Civil & Power: Monitor conductor stringing and sag during overhead line construction with real-time warnings when sag deviates from the safe operating envelope.
• Civil & Power: Define electronic perimeters around restricted zones, critical equipment, and exclusion areas where personnel or machinery intrusion requires an immediate alarm.

Key Specs

What's Included

• LiMonitor G1 sensor unit x1
• Tripod x1
• 2D pan-tilt head x1
• Power adapter x1
• Transport case x1
• LiMonitor Server local-server platform software x1

FAQs

What is the GreenValley LiMonitor G1 designed to monitor?
The LiMonitor G1 is designed for applications including safety-distance monitoring near energized equipment, overhead conductor stringing and sag monitoring, and construction-zone intrusion warning.

What monitoring range and ranging accuracy does the LiMonitor G1 provide?
The supplied specifications list a 120 m monitoring range and ±10 cm ranging accuracy.

How quickly can the LiMonitor G1 trigger an alert?
The supplied specifications list an alert response time of 0.5 seconds.

Does the LiMonitor G1 require a cloud connection for real-time alarms?
No. Measurement, monitoring, detection, and alarm functions are processed locally using the device's on-device edge computing.

What power options does the LiMonitor G1 support?
The supplied specifications list portable B60 battery, mains power, and solar power options. One B60 battery provides approximately 4 hours of operation, while two provide approximately 8 hours.
