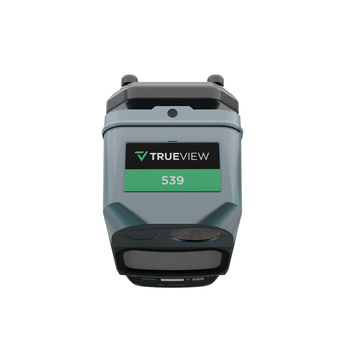

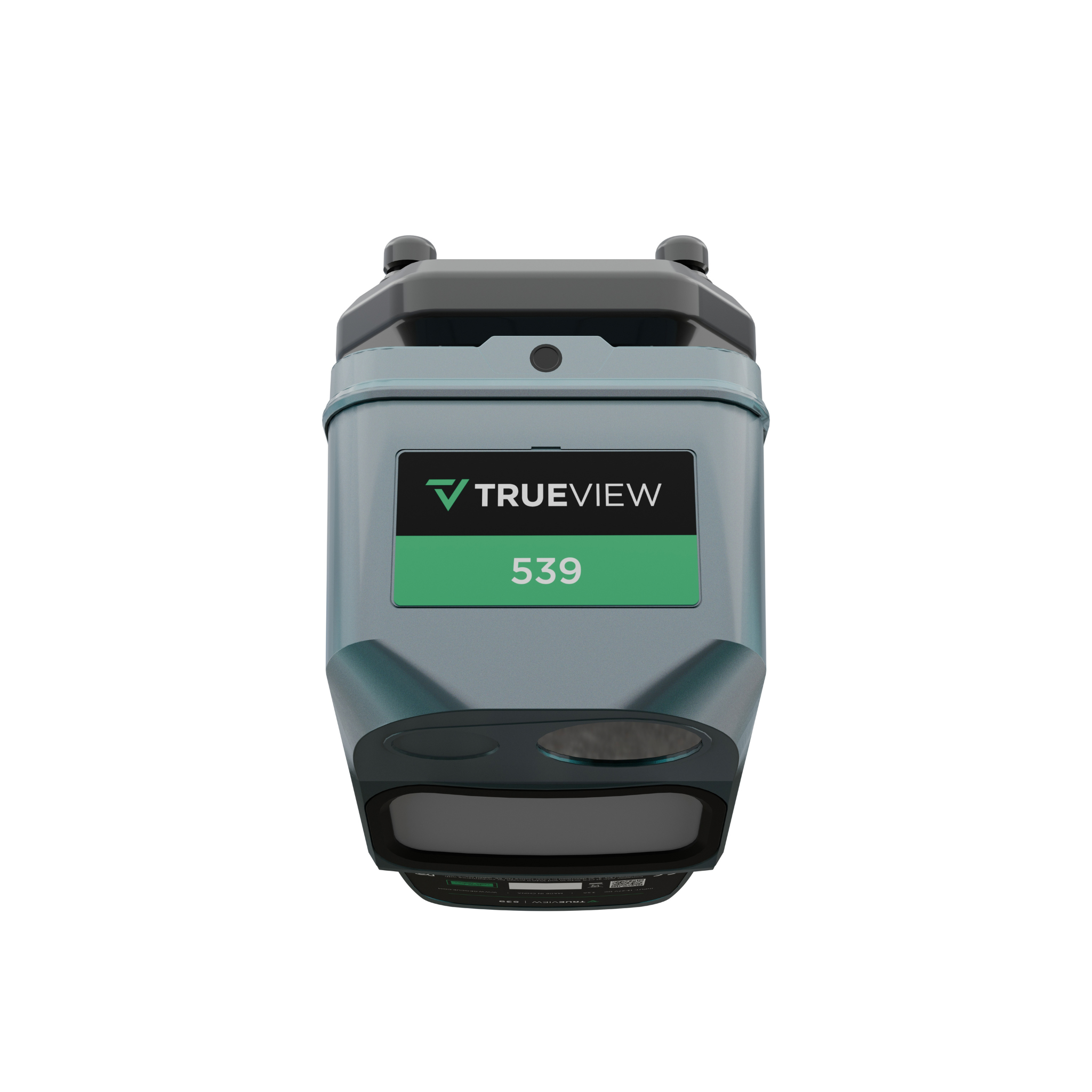

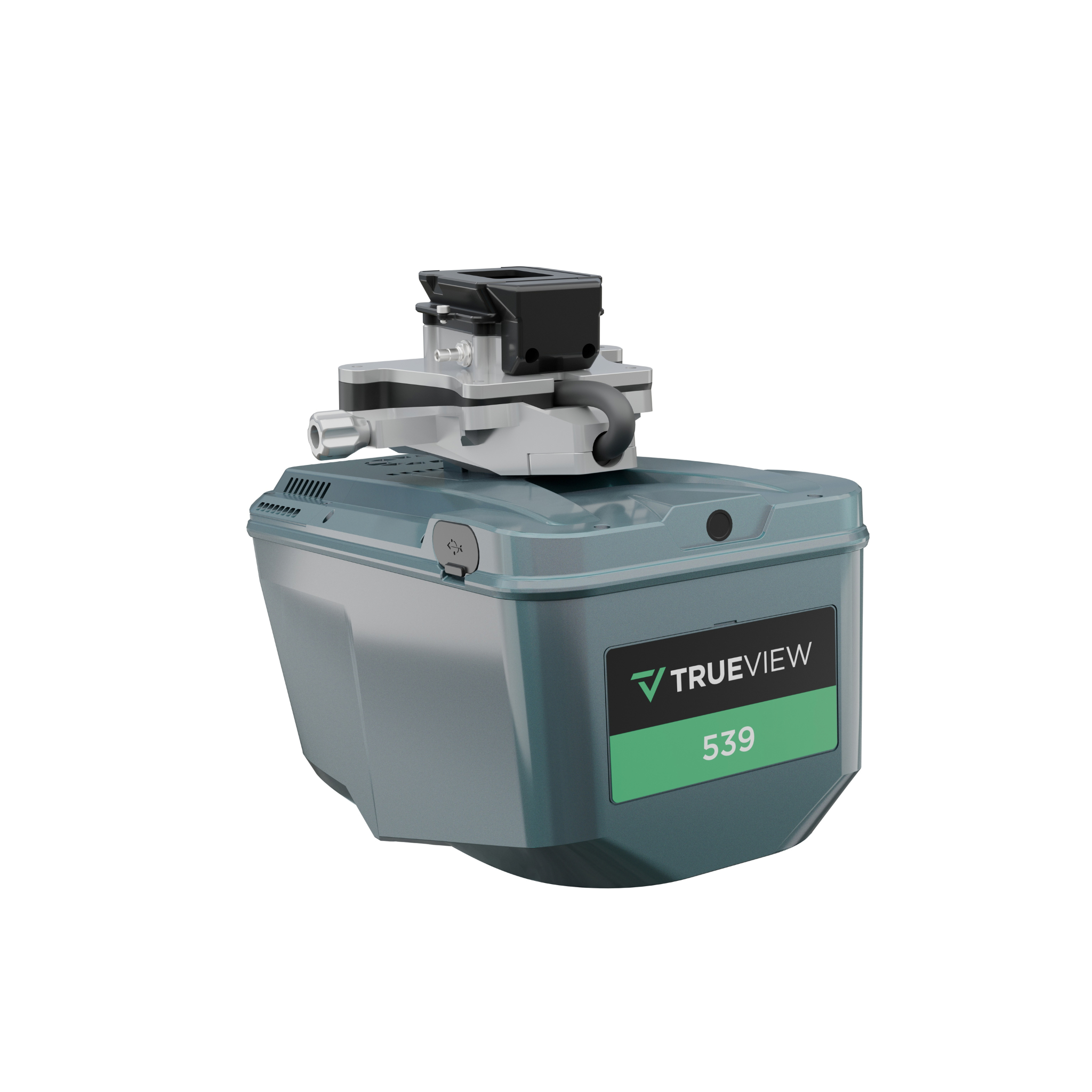

TrueView 539 Traditional incl. Software and 1 payload interface

Engineering-grade aerial LiDAR has historically meant a significant investment barrier for smaller survey firms and emerging commercial operators. The TrueView 539 changes that equation — a professional single-beam aerial LiDAR payload with a 500 kHz pulse rate, 26 MP global shutter camera, and LP360 Drone processing software included, at a price point designed to expand access beyond large enterprise operations. One payload interface is included; contact our team to confirm compatibility with your airframe before ordering.

• 500 kHz pulse rate, up to 600 m range: CHCNAV single-beam scanner with up to 6 returns per pulse delivers high point density for vegetation penetration, infrastructure surveys, and detailed terrain modelling at extended altitude.
• Integrated 26 MP global shutter camera: Full-frame sensor for colourized point clouds and planimetric mapping outputs. Pairs with the optional LP360 Photo add-on for rapid orthophoto generation.
• ~1.45 kg payload: Compact, lightweight form factor compatible with a range of professional UAV platforms. Operates from -20°C to +50°C for year-round deployment.
• CHC GNSS/INS trajectory system: Position accuracy of 10–20 mm with roll/pitch of 0.006° and heading of 0.019° for reliable trajectory solutions on survey-grade missions.
• LP360 Drone perpetual licence included: GIS-based aerial LiDAR processing for classified DEMs, contours, volumes, cross sections, and corridor extractions. Optional add-ons include Strip Align for Drone, Photo, and 3D Accuracy modules.

Includes: TrueView 539 LiDAR payload, GNSS antenna, sensor hard case, 1 payload interface, LP360 Drone perpetual licence, 1 year hardware and software support, 2 days training at GeoCue's Huntsville, AL facility.

Who It's For

• Survey and engineering firms expanding into aerial LiDAR: Engineering-grade accuracy with LP360 Drone processing included, at a lower initial investment than the TrueView 641.
• Forestry and vegetation mapping: High pulse rate and up to 6 returns per pulse support effective canopy penetration for bare-earth modelling and vegetation structure analysis.
• Infrastructure and corridor mapping: Power lines, roads, and linear features captured accurately at extended range and altitude.
• Construction and earthworks: Accurate volumetric analysis, cut/fill calculations, and terrain models for active construction sites.
• Environmental and resource management: DEM and DSM creation across varied terrain for environmental assessment and resource planning workflows.

Compatible UAV Platforms

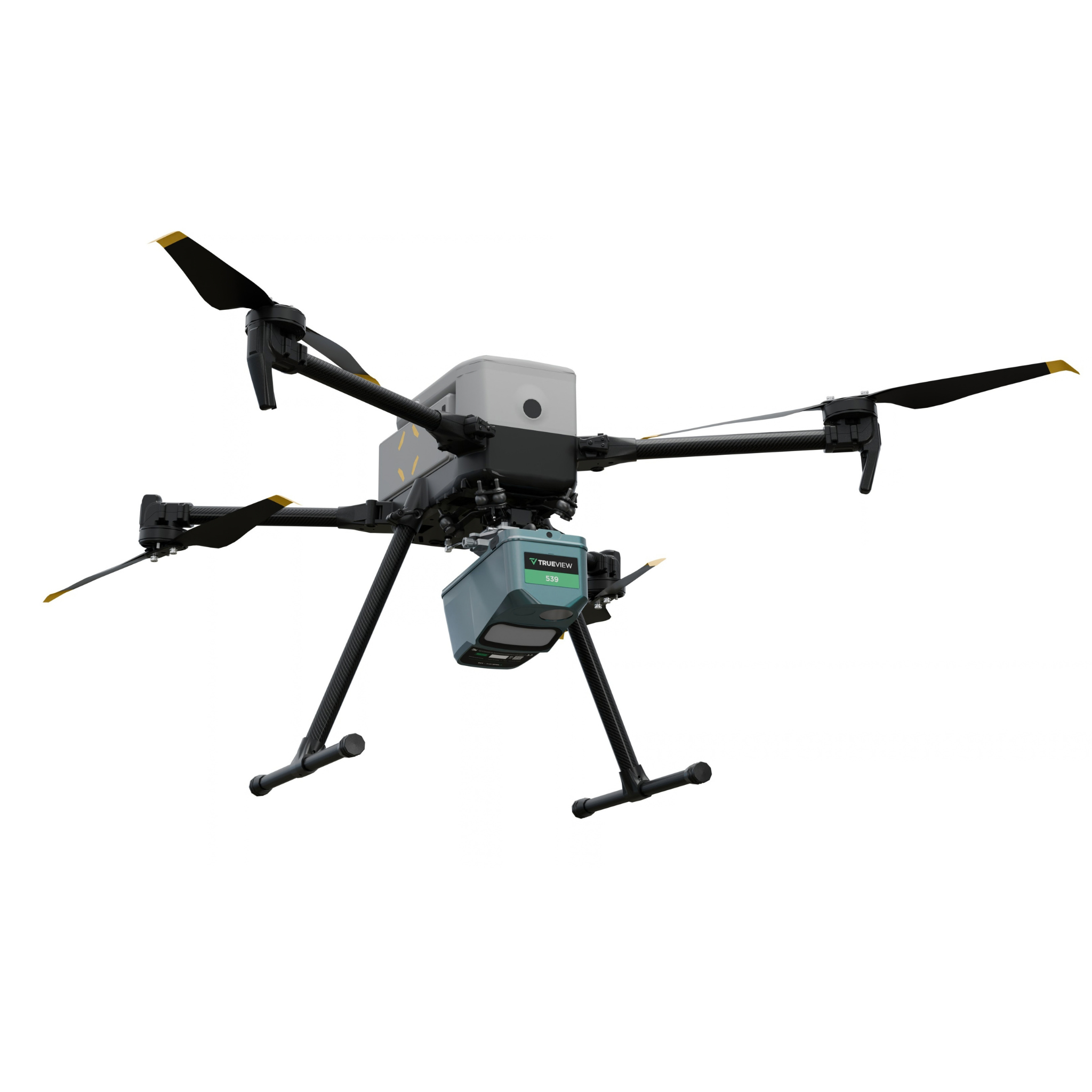

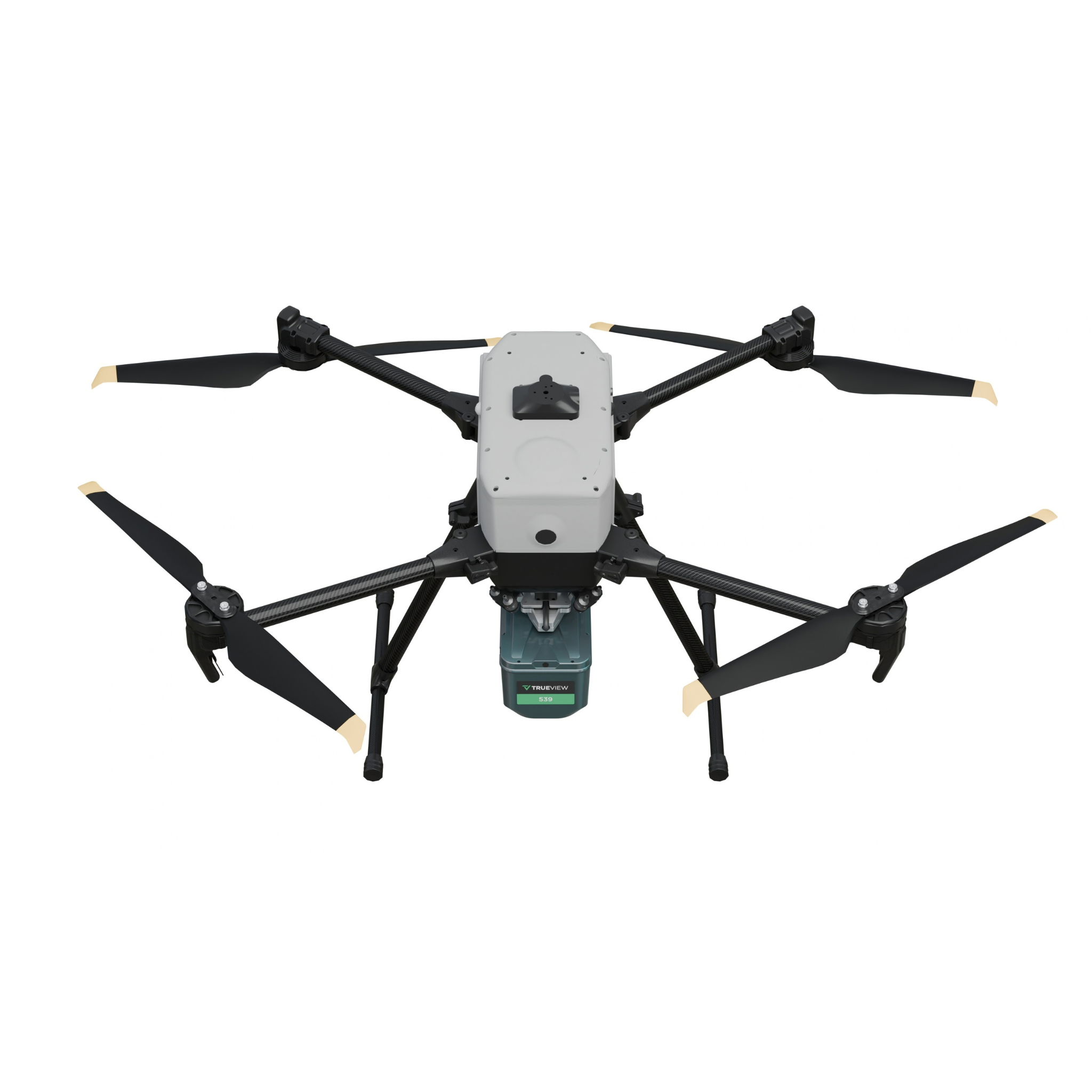

The TrueView 539 is compatible with most commercial UAV platforms that can carry the payload, including DJI, Harris Aerial, Inspired Flight, Skyfront, Freefly Systems, WiSPR Systems, and Xer Technologies. Mount kits and payload interface compatibility vary by airframe. Contact our team to confirm compatibility before ordering.

Key Specs

FAQs

What is the difference between the TrueView 539 and TrueView 641?
The 539 uses a CHCNAV scanner at 500 kHz with up to 600 m range and is not NDAA-compliant. The 641 uses a Triple-IN scanner at 125 kHz with up to 400 m range, is NDAA-compliant, and is assembled in the U.S. The 539 is the right choice for projects where NDAA compliance is not a requirement and a higher pulse rate or extended range is valuable. The 641 is required for U.S. federal, SLED, and other NDAA-restricted contracts.

Is the payload interface included?
Yes — one payload interface is included with this listing. Additional payload interfaces for different airframes may be available separately. Contact our team to confirm the correct interface for your platform before ordering.

What LP360 Drone add-ons are available?
LP360 Drone is included as a perpetual licence. Optional add-ons include Strip Align for Drone (automatic flight line correction), Photo (orthophoto generation), and 3D Accuracy. Contact our team for current add-on availability and pricing.

Does this product require a quote?
Yes. The TrueView 539 is a complex system requiring pre-sale consultation to confirm UAV compatibility and interface configuration. Contact our team or request a quote before ordering.

Warranty and Returns

This product is covered under the manufacturer's limited warranty. Candrone's standard return and exchange policy applies.

View Candrone's Warranty and Returns Policy

For warranty claims or support, contact our team at 1-888-461-5742 or visit our Contact page.
