TrueView 641 Traditional incl.Software

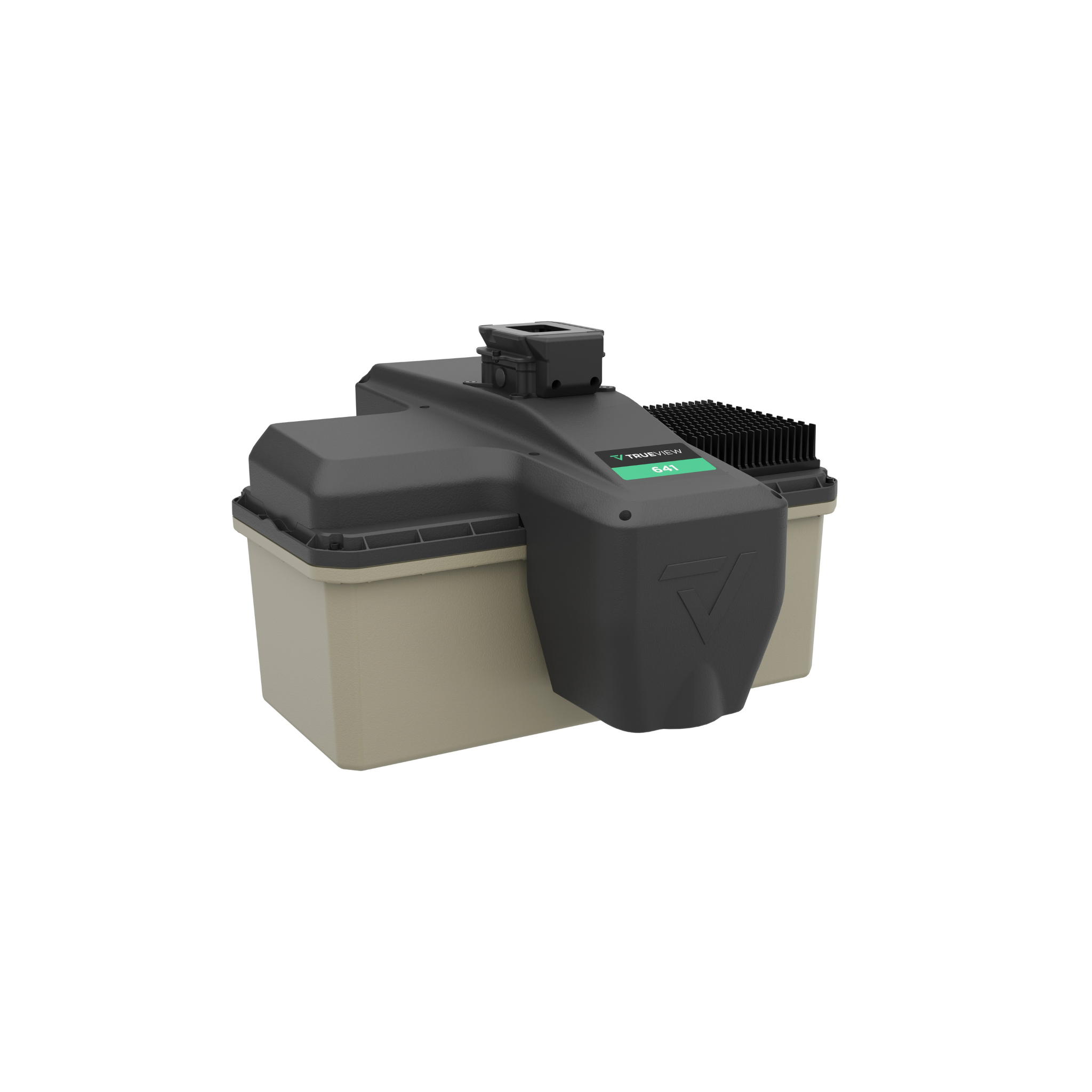

Federal and enterprise aerial mapping projects increasingly require NDAA-compliant hardware throughout the sensor stack — not just the airframe. The TrueView 641 is GeoCue's NDAA-compliant aerial LiDAR payload: a single-beam sensor with up to 400 m range, sub-4 mm accuracy, and a 26 MP global shutter camera, engineered in Germany and assembled in the U.S. LP360 Drone with Strip Align for Drone and Photo processing is included, along with two days of hands-on training at GeoCue's facility.

• NDAA-compliant, Made in USA assembly: Sensor developed by German LiDAR maker Triple-IN and assembled in the United States. Designed for U.S. federal, state, local, and educational (SLED) contracts and international missions requiring NDAA compliance.
• Up to 400 m range, sub-4 mm accuracy: 120° field of view with up to 6 returns per pulse and a pulse repetition rate of up to 125 kHz. System accuracy of approximately 3 cm RMSE under optimal GNSS and control conditions.
• Integrated 26 MP global shutter camera: Full-frame sensor for colourized point clouds, planimetric mapping, and rapid orthophoto generation via the included LP360 Photo module.
• TrueNav GNSS/INS trajectory system: Position accuracy of 10–20 mm with roll/pitch orientation accuracy of 0.006° and heading of 0.019° for high-quality trajectory solutions on demanding missions.
• LP360 Drone perpetual licence included: Full aerial LiDAR processing environment with Strip Align for Drone (automatic flight line correction), Photo (orthophoto generation), and QA/QC tools. Generates classified DEMs, contours, stockpile volumes, corridor extractions, and feature-constrained models.

Includes: TrueView 641 LiDAR payload, GNSS antenna, sensor hard case, LP360 Drone perpetual licence (Strip Align for Drone and Photo modules included), 1 year hardware and software support, 2 days training at GeoCue's Huntsville, AL facility.

Who It's For

• Federal and government survey contractors: NDAA compliance for SLED contracts, U.S. federal agency work, and international missions with equivalent procurement requirements.
• Corridor and infrastructure mapping: Power line extraction, rail corridor mapping, road surveys, and linear infrastructure documentation at extended range.
• Topographic and vegetation mapping: Up to 6 returns per pulse for canopy penetration and bare-earth modelling in forested and mixed terrain.
• Construction and engineering: High-accuracy volumetric calculations, cut/fill analysis, and cross sections from a portable, sub-2 kg payload.
• Urban and transportation mapping: Dense urban environments requiring a compact, high-accuracy sensor with a wide field of view and strong trajectory performance.

Compatible UAV Platforms

The TrueView 641 is compatible with a range of professional UAV platforms including DJI, Harris Aerial, Inspired Flight, Skyfront, Freefly Systems, WiSPR Systems, and Xer Technologies. Mount kits and availability vary by airframe. Contact our team to confirm compatibility with your specific platform.

Key Specs

FAQs

What software add-ons are available for the TrueView 641?
LP360 Drone is included with Strip Align for Drone and Photo. Optional add-ons include 3D Accuracy and other LP360 Drone modules. Contact our team for current add-on availability and pricing.

Is the TrueView 641 compatible with my drone?
The 641 is compatible with DJI, Harris Aerial, Inspired Flight, Skyfront, Freefly Systems, WiSPR Systems, and Xer Technologies platforms. Contact our team with your airframe details to confirm mount kit availability and configuration.

What is the difference between the TrueView 641 and TrueView 539?
Both are aerial LiDAR payloads with similar physical specs and LP360 Drone software. The key difference is compliance: the TrueView 641 is NDAA-compliant and manufactured with a U.S. assembly process. The TrueView 539 is not NDAA-compliant, uses a CHCNAV scanner at a higher 500 kHz pulse rate, and is available at a lower price point for projects where NDAA compliance is not required.

Does this product require a quote?
Yes. TrueView 641 is a complex system requiring pre-sale consultation to confirm UAV compatibility and configuration. Contact our team or request a quote to discuss your project requirements.
